1975 GMC Jimmy Parts Guide: What to Replace, Restore, and Upgrade First

June 9, 2025 3 min read

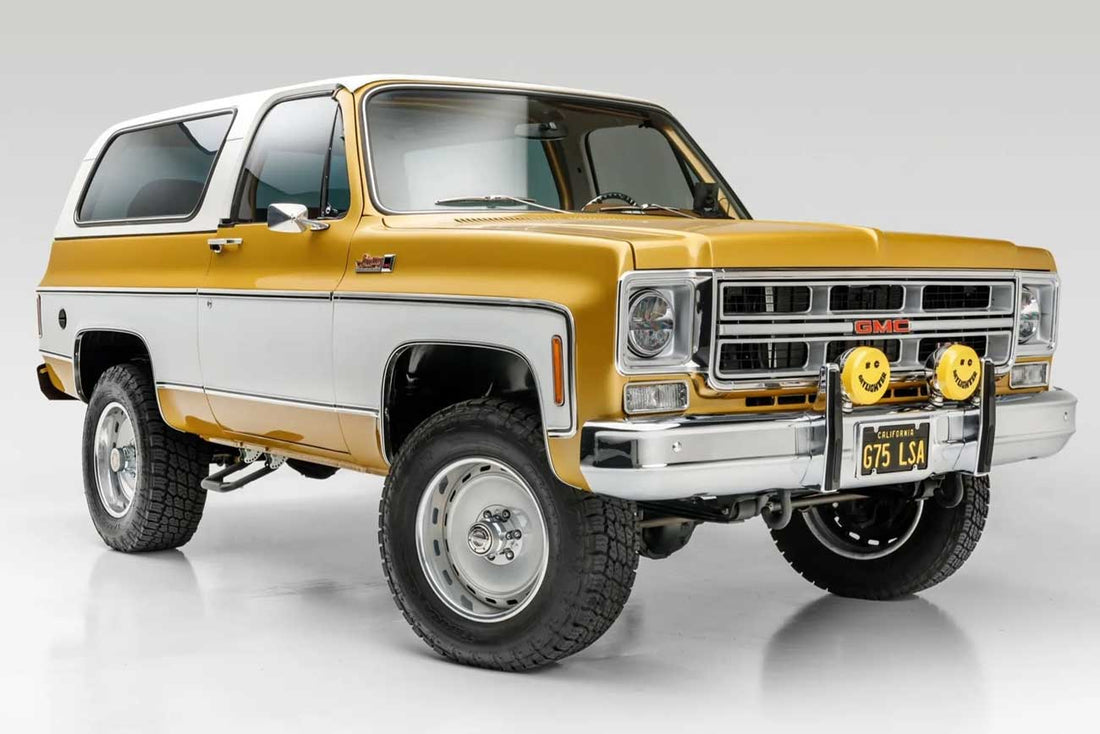

Restored 1975 GMC Jimmy in gold and white two-tone paint with original GMC grille and chrome trim

The 1975 GMC Jimmy doesn’t just turn heads—it turns dirt, rocks, and just about anything in its path. Whether you’re restoring one for trail duty, daily driving, or weekend cruises, these early full-size SUVs offer the perfect blend of vintage cool and off-road credibility. But before you start bolting on lift kits or polishing trim, you’ll want to focus on the parts that keep the Jimmy rolling, steering, and stopping right.

This guide covers the most important 1975 GMC Jimmy parts to check, what commonly fails, and a few smart upgrades for anyone looking to get more out of their build—whether you’re doing it frame-off or just fixing what’s broken.

The 1975 Jimmy: Big, Boxy, and Built to Roam

Part of the second-generation Jimmy/K5 Blazer platform, the 1975 model came with removable steel roof panels, full-time 4WD, and either a small-block V8 or inline-6 under the hood. It was rugged, roomy, and ready for whatever the trail (or ranch) threw at it.

Fun stat: The ’75 Jimmy was one of the first SUVs to be factory-equipped with GM’s new NP203 full-time transfer case.

It’s a great platform—but after nearly 50 years, it’ll need more than just a wash and wax.

Parts That Usually Need Replacing

Drivetrain and Axles
These trucks are known for solid axles—but not for subtlety. Expect vibration, leaking seals, and worn joints.
Start with:

U-joints (front and rear driveshafts)
Axle seals and bearings
Transfer case output seals
Manual locking hub kits (many full-times are converted)
Differential covers (prone to rust and damage)

Suspension and Steering
Even stock, the Jimmy had a soft ride and sloppy steering. Worn bushings make it worse.
Common replacements:

Leaf springs (front and rear)
Shocks (upgrade to nitrogen gas for trail duty)
Tie rods and drag link
Steering stabilizer
Steering box or frame reinforcement bracket (the frame flex is real)

Brakes
Front discs and rear drums came standard, but most of these systems need a full refresh.
Expect to replace:

Front pads, rotors, and calipers
Rear shoes and drums
Master cylinder
Brake booster
Flexible brake hoses

Cooling System
V8s tend to run hot—especially when idling off-road or in summer traffic.
Check or replace:

Radiator (3- or 4-core upgrades are popular)
Water pump
Fan clutch or electric fan conversion
Thermostat and housing
Overflow bottle and radiator cap

Smart Upgrades Worth Considering

While keeping it stock has its charm, these updates make the Jimmy way more livable and trail-ready:

Power steering pump with cooler
Dual battery setup (if you run accessories)
Polyurethane body and suspension bushings
Rear disc brake conversion
EFI swap if you’re tired of carb issues on hills

Interior and Comfort Fixes

Let’s face it—the inside of most Jimmys hasn’t aged gracefully.
Start with:

Seat rebuild kits or modern bucket swaps
Dash pad replacement or cover
Weatherstripping and window channel felts
Gauge cluster cleaning or digital upgrade
Sound deadening under carpet and roof panel

Tips from the Garage

If it’s a full-time 4WD model, consider converting to part-time—it reduces drivetrain wear and improves MPG.
Use anti-seize on every bolt. You’ll thank yourself later when you’re 30 miles into a trail and need to do a repair.
The fiberglass tops are heavy and awkward—grab a friend or hoist before trying to remove it solo.

Sourcing 1975 GMC Jimmy Parts

At Classic Parts Pro, we know what it’s like to chase a rare bracket or a trim piece that hasn’t been made in 30 years. That’s why we’re building a library of 1975 GMC Jimmy parts from the small vendors, salvage yards, and specialty fabricators that know these trucks better than anyone. Whether it’s brake hardware or axle seals, we’re working to bring it all into one place.

Need something specific? Reach out. Chances are we’ve got a lead—or we’re already looking for the same thing.

Final Thoughts

The 1975 GMC Jimmy is a classic for a reason. It’s loud, it’s square, and it’s loaded with potential. Whether you’re bringing yours back to bone-stock or building the trail rig you’ve always wanted, Classic Parts Pro is here to help with real-world advice and the parts to make it happen.
