Classic Car Cooling System Refresh: Stop Overheating Before It Starts

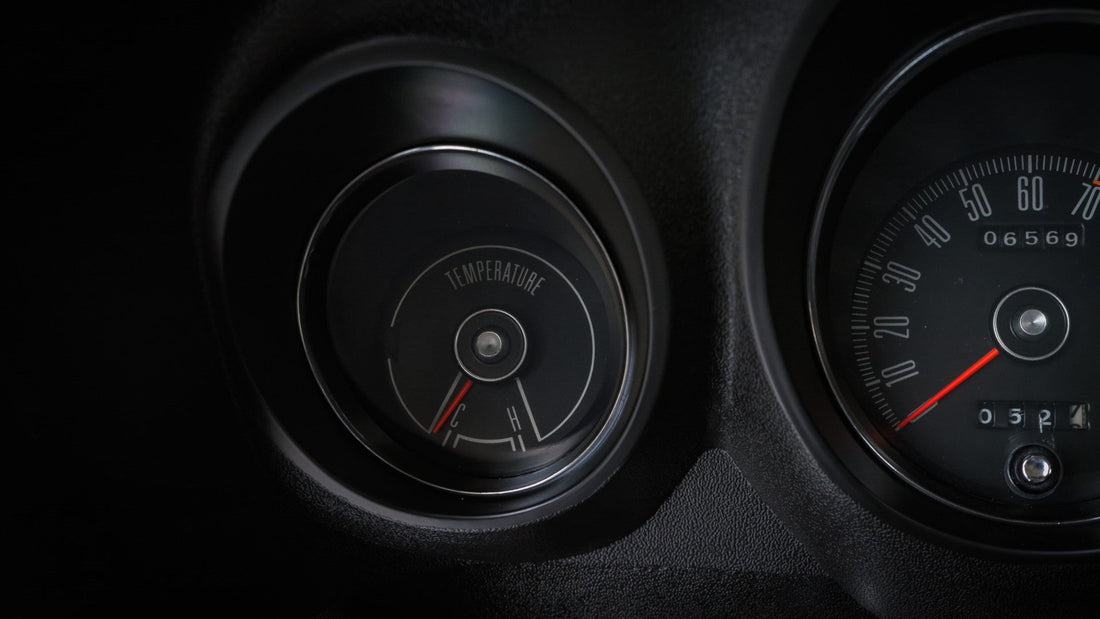

Nothing kills a good cruise faster than watching the temperature needle climb while you’re stuck at a light. Classic cars and trucks can run cool and reliable, but only when the whole cooling system is doing its job. A fresh radiator won’t save you if the hoses are soft, the thermostat is stuck, the fan isn’t pulling air, or the cap can’t hold pressure.

Cooling problems usually look mysterious from the driver’s seat. Under the hood, they’re often simple. Old parts, clogged passages, weak airflow, and small leaks all stack up until the car starts running hot. Here’s how to sort the system before it leaves you on the shoulder.

Start With the Radiator

The radiator is the heart of the cooling system, but age is not kind to it. Old cores can clog internally, fins can fold over, and solder joints can start weeping long before you see a dramatic puddle. If your classic runs fine on the highway but heats up in traffic, look closely at airflow and radiator condition. If it runs hot everywhere, suspect restricted flow, a weak water pump, or a plugged core.

Don’t judge a radiator only by how it looks from the front. Shine a light through the fins. Check for green crust around seams. Look for stains near the lower tank and hose necks. If the radiator has been patched several times, it may be time to stop chasing leaks and refresh the system with the right cooling system parts for your build.

Hoses Are Cheap Insurance

Radiator hoses live a hard life. They see heat, pressure, vibration, coolant, and age. A hose can look fine on the outside and still be weak inside. Squeeze the upper and lower hoses when the engine is cool. If they feel mushy, cracked, swollen, or overly stiff, replace them.

Pay attention to hose routing, too. A hose that rubs against a bracket, pulley, or sharp edge will eventually fail. Use proper clamps, seat the hose fully on the neck, and avoid overtightening. A clamp should seal the hose, not cut into it.

Thermostats Matter More Than People Think

A thermostat is not just a warm-up part. It controls coolant flow so the engine reaches and holds the right operating range. When it sticks closed, the engine overheats quickly. When it sticks open, the car may run too cool, warm up slowly, or never stabilize properly.

Install the correct temperature thermostat for your engine and driving style. Don’t leave it out because “more flow” sounds better. Coolant needs time in the radiator to shed heat. Removing the thermostat can actually make temperature control worse.

Check the Cap and Pressure

The radiator cap is one of the most ignored parts in the system. It holds pressure, raises the coolant’s boiling point, and helps move coolant between the radiator and overflow setup when equipped. A weak cap can make a healthy system act sick.

If you see coolant pushing out after shutdown, random overflow, or boiling even when the gauge doesn’t seem extreme, inspect the cap. Make sure the pressure rating matches the system and that the seal is clean and flexible. It’s a small part, but it can cause big headaches.

Airflow Is Everything at Idle

If the car runs cool at speed but gets hot sitting still, you likely have an airflow problem. The radiator only works when air moves through it. At road speed, the car does that naturally. At idle, the fan has to do the work.

Check fan direction, fan clutch condition, belt tension, and shroud placement. A missing shroud can make a good fan act lazy because it pulls air from around the radiator instead of through it. The fan should sit correctly in the shroud opening, and the shroud should fit close enough to guide air without hitting the blades.

Electric fans need the same attention. Make sure they are wired correctly, triggered at the right temperature, and pulling or pushing in the correct direction. If the wiring is old or patched together, look through the electrical parts side of the build before blaming the radiator.

Don’t Ignore the Water Pump and Belts

The water pump moves coolant through the engine, radiator, and heater circuit. If the bearing is noisy, the shaft has play, or coolant is leaking from the weep hole, it’s done. A slipping belt can create similar symptoms because the pump and fan may not spin consistently under load.

Look at the belt with the same mindset you use for hoses. Cracks, glazing, fraying, and poor tension are warning signs. If the belt squeals when you rev the engine, fix it before chasing deeper cooling problems.

Flush the System the Right Way

Old coolant turns acidic, collects rust, and leaves deposits behind. Flushing the system helps, but don’t expect a quick rinse to fix years of neglect. Drain the old coolant safely, flush until the water runs clean, and inspect what comes out. Rust flakes, sludge, or oily residue are clues.

If the coolant looks nasty, plan on inspecting the thermostat housing, heater hoses, water pump, and engine-side passages. Cooling problems are rarely isolated to one part. They spread through the whole system.

Watch for Engine-Side Problems

Sometimes the cooling system is only telling you there’s another issue. A lean carburetor, incorrect ignition timing, dragging brakes, or a restricted exhaust can make a classic run hot. So can a head gasket problem. If the cooling system checks out but the temperature keeps climbing, widen the search.

This is where a full-system mindset helps. Cooling, fuel, ignition, and mechanical condition all work together. When you’re refreshing the engine bay, it makes sense to inspect related engine parts while you’re already in there.

The Payoff

A sorted cooling system doesn’t get much attention when it’s working right. That’s the point. The gauge stays steady, the car restarts after a fuel stop, and you stop planning every drive around shade and traffic.

Before your next long cruise, check the radiator, hoses, cap, thermostat, fan, belts, and coolant condition. Fix the weak links now, and your classic will feel less fragile and a lot more ready to drive.
