Firewall Pass-Throughs Done Right: Grommets, Floorplates, and the Seals That Stop Fumes

If your build smells like exhaust and hot oil every time you get on the throttle, that's not character — that's a sealing problem. And nine times out of ten, it starts at the firewall.

This isn't a basic lecture. This is the stuff you end up fixing after the first test drive when you realize the engine bay is basically drafting straight into the cabin.

Every firewall hole is either a controlled pass-through or an uncontrolled leak. There's no in-between. "Close enough" grommet sizing leads to wire chafe, cable drag, and the kind of intermittent gremlins that take hours to chase down. Dense EPDM grommets aren't just about looks — they're about keeping abrasion in check and fumes out. And don't sleep on the floor-level pass-throughs like the steering column and clutch pushrod. They sit low, they get dirty, and they breathe.

Walk the Firewall Before You Order Anything

Do one lap with a work light and your hands before you buy a single grommet. You're looking for open holes where something used to be, pass-throughs with the right cable but the wrong seal, rubber that's gone hard and shrunk back off the metal edge, and anything that moves — throttle linkage, kickdown cable, parking brake — that's rubbing bare sheetmetal. If you can wiggle a harness at the firewall and see daylight around it, it's a future failure point. Deal with it now.

The Pass-Throughs That Actually Matter

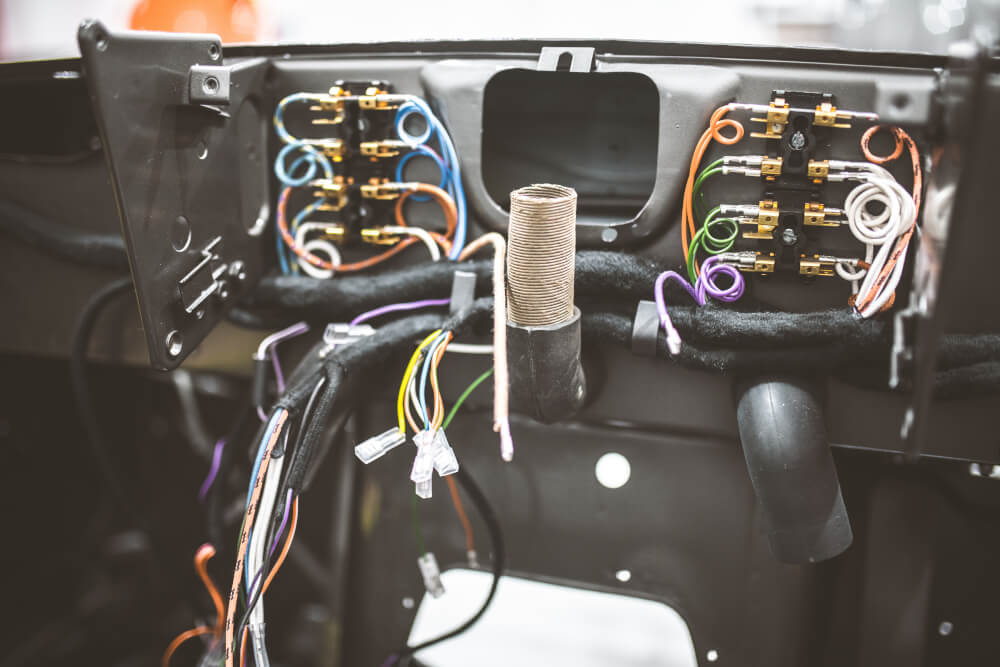

Main Wiring Harness

This is the big one. The goal is protecting the harness from the edge and sealing the hole so the cabin doesn't turn into a fume collector. You want a grommet built specifically for routing a main harness bundle — the right diameter and lip depth are what keep the harness centered instead of slowly sawing through the insulation. The 2" Wiring Harness Firewall Grommet is designed exactly for this job.

Speedometer Cable

Speedo cable routing gets sloppy fast, especially on older clusters where the cable angle is already marginal. You need a grommet that guides the cable and actually seals the bore — not just something that fills the hole. The 2-1/2" Firewall Grommet is built for this, with a defined bore that keeps the cable from buzzing the firewall and feeding noise into the interior.

Parking Brake Cable

The parking brake cable moves. A soft grommet that doesn't fit the groove is going to walk right out. The 7/8" Firewall Grommet gives you enough resilience to seal and enough structure to stay seated while the cable does its thing.

Oil Pressure and Temp Lines

Any line that carries oil, vapor, or heat is a priority. You're not just keeping water out — you're keeping hot smells and residue from soaking into carpet and insulation. If you've ever wondered why your interior smells like engine bay on a warm day, this is usually where it starts. The 1-5/8" Firewall Grommet handles oil pressure and temperature line pass-throughs cleanly.

Single-Wire Pass-Throughs

One-wire setups tempt people into drilling a big hole "for future use." Don't do it. A tight grommet cuts down on wire motion and prevents fretting at the sheetmetal edge. The 1-1/4" Firewall Grommet is the right size for water temp coil wires and similar small runs.

Multi-Wire Ports on Classic Engines

Some engine bays route multiple wires and cables through one large opening. The right call is a grommet designed to manage multiple paths, not a single-wire plug doing overtime. The 2-3/16" Firewall Grommet handles this cleanly on Mopar-style and other classic applications.

Larger Dash Wiring Bundles

If your dash harness or added accessories are pushing you into a bigger opening, go up in size but don't skip the lip retention. The 2-1/4" Firewall Grommet and 2-7/8" Firewall Grommet give you room without turning the firewall into an open tunnel.

Linkage Pass-Throughs

Some cars route hood lock links and similar hardware through the firewall. Drive one of these in the rain with the grommet missing and you'll understand immediately. The 3" Firewall Grommet is built for larger specialty pass-throughs. Bigger hole, bigger problem if you leave it open.

Floor-Level Steering Column and Clutch Pushrod Area

This is the one that gets overlooked the most. On mid-50s cars especially, this area is a direct path for road dust, moisture, and noise. It sits right where water from the cowl and wet carpet collects. The Steering Column and Clutch Pedal Floorplate is designed specifically as a seal between the steering gear and clutch pedal pushrod on 1955–56 Chevrolet applications. It's the kind of part nobody notices until it's missing — and then they wonder why the car feels drafty and dirty inside.

Install It Right the First Time

A quality grommet can still fail if the prep is sloppy. Deburr the hole like you mean it — a sharp stamped edge is just a wire saw waiting to happen. Treat any rust at the edge before the rubber goes on, because rubber over rust is just a moisture trap. Make sure the grommet fully engages the firewall thickness — a grommet that only grabs half the metal will pop loose the first time the cable gets yanked. Give your harnesses and cables a small service loop so movement happens away from the pass-through, and go easy on adhesive. If the grommet fits right, it should stay mechanically. Glue is a helper, not the retention system.

Any harness chafe at the firewall is a fire risk. Brittle insulation plus a sharp edge plus vibration is a combination that doesn't end well.

The Payoff

When the firewall is sealed correctly, the car feels more finished without looking any different. Less exhaust smell, less road noise bleeding in, and fewer electrical head-scratchers that start as "weird intermittent" and end up being traced back to a chafed wire at a sheetmetal edge. Fix the holes, control the pass-throughs, and move on to the fun stuff.
